The initial process in coal based thermal power plant is coal handling.The Function of coal Handling Plant in thermal power plant is to receive , process, store, feed the coal bunkers consistently over entire life of the power plant. Coal is transported in thermal power station either by railways, roadways or rope ways.
Coal Handling Plant In Thermal Power Plant Consist of Following Process in sequence
Unloading process
This process involves unloading of coal from BOBR(Bogie Open Bottom Discharge) and Box type wagons.Unloading of BOBR wagons done in Track Hopper and for BOX types wagons unloading of coal is achieved by Wagon Tippler.
Feeding Process
This process involves continuous or control flow of coal to meet the requirement of coal in bunker. Various types of feeder are used for this process in coal handling plant depending upon the capacity of conveyor belt. In CHP below listed feeders are commonly used:
- Paddle Feeder
- Apron Feeder
- Belt Feeder/Reversible Belt Feeder
- Vibrating feeder
Screening Process
This process involves screening of fine , coarse and wet coal.To achieve these process below listed screens are used in coal handling plant.
- Vibrating Screen
- Roller Screen
Crushing Process
This process involves crushing the coal to a size as per requirement of thermal power stations prior to pulverization. Ring granulator type crusher is generally used in coal handling plant to crush the coal.
Stacking & Reclaiming Process
In stacking process crushed coal are stored in a yard. This process is generally used when boiler bunker level is full.
In reclaiming process the stored coal are reclaimed for sending to boiler bunkers. This process is used when boiler bunker level is low.
Both the process ( stacking & reclaiming) is achieved by stacker cum reclaimer.
Bunkering Process
This process involves maintaining the level of boiler bunkers. From the conveyor belt the coal is discharged into bunkers with the help of tripper trolly.

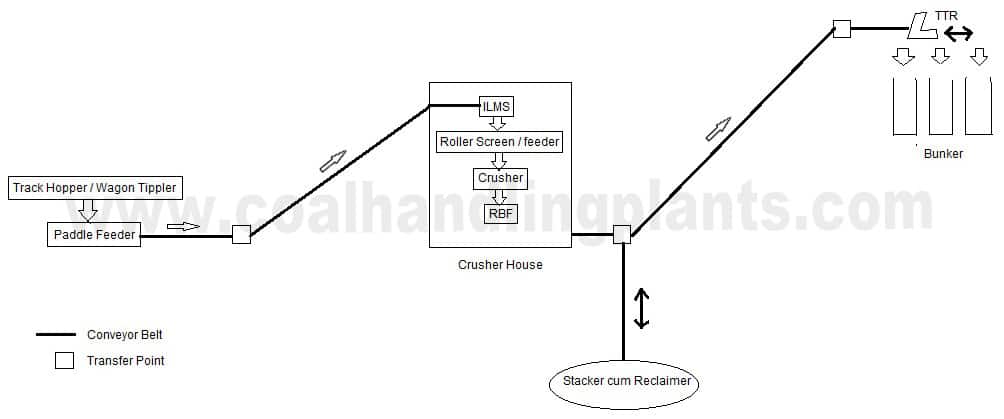

Basic Coal Flow Diagram of Coal Handling Plant In Thermal Power Plant
Equipment’s Of Coal Handling Plant In Thermal Power Plant
Track Hopper
They are used to store the coal unloaded by BOBR wagons. The length of track hopper is approx 210 meter long. Track Hopper is made from reinforced cement concrete(RCC) hopper,steel gratings which covering the RCC hopper and two parallel rail track at the center of the hopper.
Wagon Tippler And Side Arm Charger
Wagon tippler are used to unload the BOX type wagons into coal hopper. They have a rail table mounted on a rotary support structures which can lift and tilt wagons to an angle of about 135 degree.
Side arm charger is used with wagon tippler ,helps in increasing the tippling speed of wagon tippler by fast placement and removal of wagons from tippler table.
Hydraulic Truck Unloader
The function of hydraulic truck unloader is to unload the coal from truck. They are generally used in coal handling plant where facility of wagon tippler and Track hopper are not available.
Paddle Feeder / Plough Feeder
A paddle feeder extracts coal from the track hopper and feeds it uniformly onto the conveyor belt for further handling.
Conveyor System
A conveyor system is a mechanical setup used to transport bulk materials like coal, ash, or limestone over short or long distances. In a thermal power plant, it moves coal from the track hopper or bunker to various stages of the coal handling system. It typically includes belts, pulleys, rollers, and drives, ensuring continuous, efficient, and dust-free material transfer.
Suspended Magnet
They are provided for picking up tramp magnetic pieces from moving coal over belt conveyor.
Inline Magnetic Separator ( ILMS )
They are provided for continuous and automatic extraction and discharge of tramp magnetic pieces from the point where coal being discharged from conveyors.
Roller Screens / Vibrating Screens
They are used for screening of fine, coarse and wet coal. The fine coal sizes are less than 20 mm.
Flap Gate
They are provided in transfer chute to channelize the route of coal. They are equipped with electrically operated actuators.
Rack And Pinion Gate
Rack and pinion gates are used generally to block the coal flow route require during maintenance work.It consists of a gate frame, blade, rack, pinion gear, pinion shaft, shaft bearings and a manual or powered shaft drive.
Crusher
A crusher is a mechanical equipment used in coal handling plants to reduce large coal lumps into smaller, uniform sizes suitable for conveying and combustion in the boiler.
Belt Feeder / Reversible Belt Feeder
A belt feeder is a type of conveyor used to extract and control the flow of coal or bulk material from hoppers or bunkers at a regulated rate. It provides a smooth and consistent feed to the conveyor system downstream.
A reversible belt feeder can run in both directions, allowing material to be discharged to either of two conveyors or systems. It is useful in plants where material needs to be distributed to multiple locations, improving flexibility and reducing equipment needs
Stacker Cum Reclaimer
A stacker cum reclaimer is a large bulk material handling machine used in coal handling plants to stack (store) and reclaim (recover) coal from the stockyard.
Traveling Tripper Trolley
They are use to feed the coal into bunker continuously. The tripper shall have provision for dropping coal both sides of conveyor into the bunker.
Coal Sampling Unit ( CSU )
The function of CSU is to collect the sample of coal at regular interval of time.
Dust Extraction ( DE ) System
DE system is an air quality improvement system used in coal handling plant to improve breathable air quality and safety by removing dust particle from the air/environment. It works on the basic formula of collection, separation and filtration.
Dry Fog Dust Separation ( DFDS) System
They are used to control the fine dust particle Produced during the coal flow. DFDS system uses high pressure of air (about 3-4 bar) and low pressure of water(about 2-3bar),which generates dry fog and being sprayed at the point of dust generation .The spray angle covers 30 to 90 degree.
The nozzle of DFDS system are fitted at discharge and tail side of conveyor belt.
Belt scale
Belt weigh scale are used for measurement of coal flow rate and quantity.
Other equipment’s like Pneumatic system, hydraulic system,Thruster Brake, monorail with hoist, pumps ,compressors etc are used in coal handling plant.
Type Of Coal Received In Coal Handling Plant
Generally E and F grade coal are received in thermal power stations. Grades of coal and their respective calorific value are listed below.

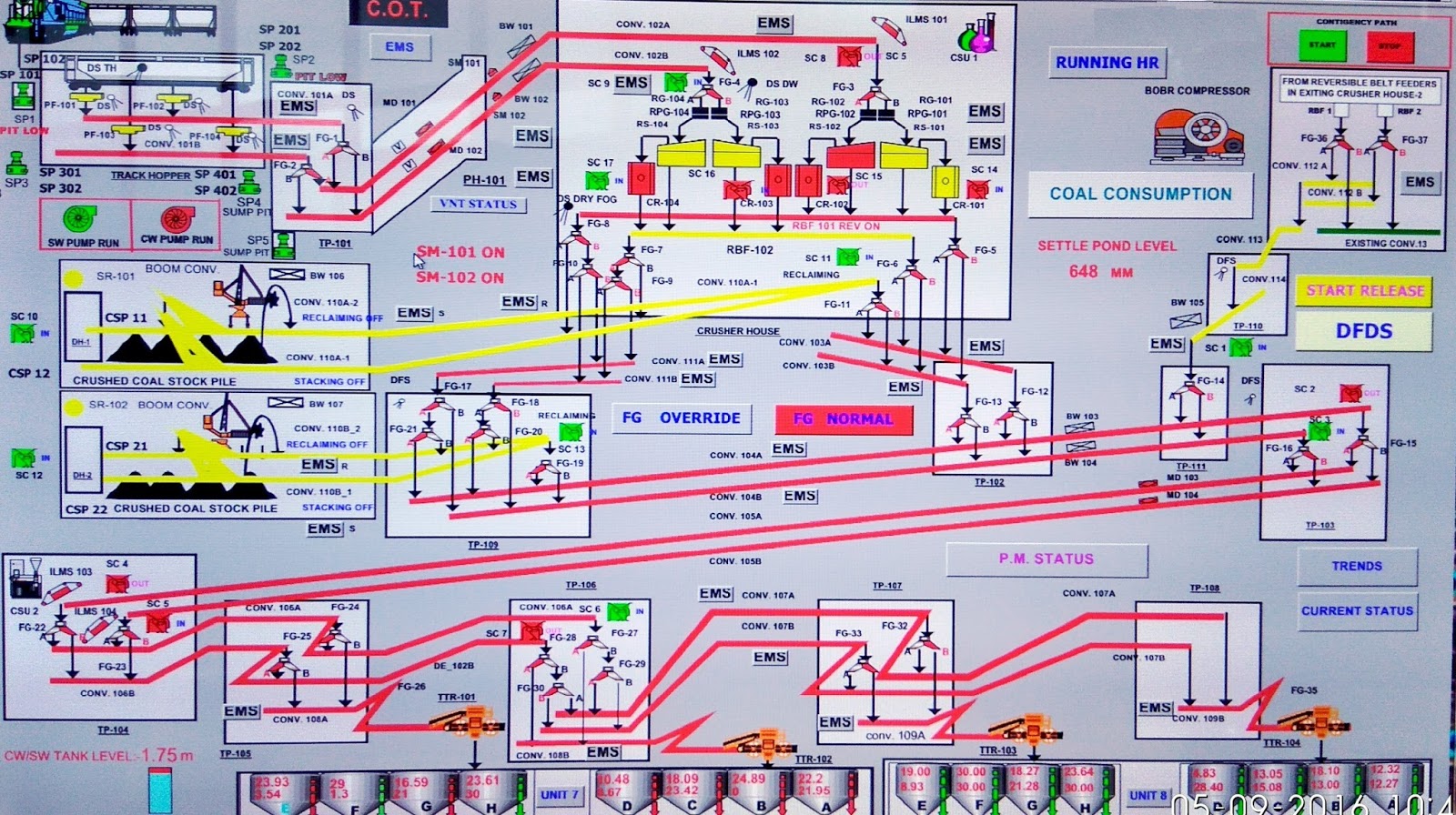

Typical Coal Flow Diagram of Coal Handling System In Thermal Power Plant
Types Of Plant Maintenance Done In Coal Handling Plant
1. Preventive Maintenance
It involves the systematic inspection of equipment where potential problems are detected and corrected in order to prevent equipment failure before it happens. Maintenance scheduled is based on a time or usage trigger.
2. Breakdown Maintenance
Breakdown maintenance is maintenance performed on equipment that has broken down and is unusable.
3. Corrective maintenance
It is a maintenance task performed to identify, isolate, and rectify a fault so that the failed equipment / machine /system can be restored to their original operating condition.
4.Predictive Maintenance (condition monitoring)
It is a maintenance involve regularly monitoring the status and operational capacity of the equipment or machine by knowing the values of certain variables(temperature, vibration, power consumption, sound,etc.).
5. Shutdown Maintenance
It is a maintenance that can only be performed while equipment is not in use.
